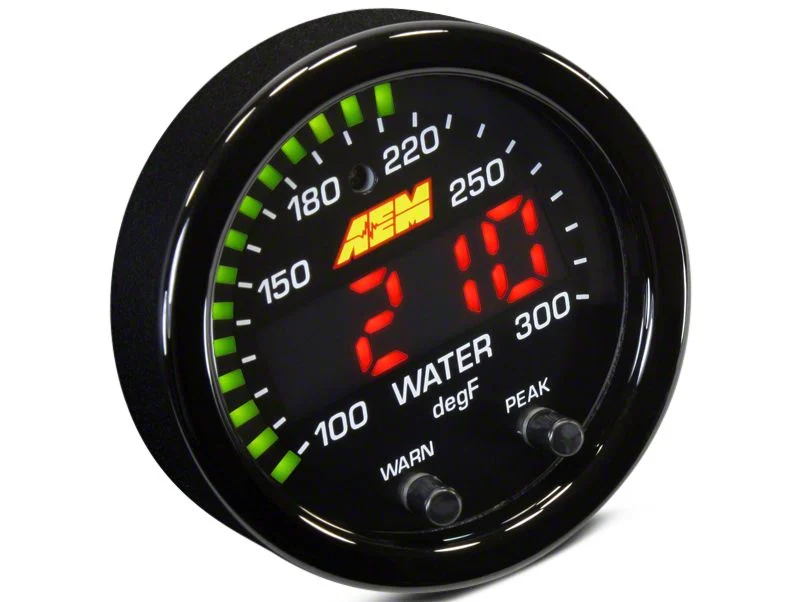

AEM Electronics X-Series Temperature Gauge; Electrical (Universal; Some Adaptation May Be Required)

Description

Advanced Temperature Monitoring. The AEM Electronics X-Series Temperature Gauge Electrical delivers precise temperature monitoring for water, transmission, or oil systems in high-performance vehicles. It enhances situational awareness by providing accurate, easy-to-read digital temperature measurements critical for maintaining optimal engine conditions and preventing overheating. The gauge supports both Fahrenheit and Celsius readings and is suitable for racing and street use.

Construction and Appearance. This gauge features a black bezel and faceplate with a bright, large LED digital display complemented by a sweeping green LED needle around the outer edge. The durable housing is compact at 2-1/16 inches in diameter and includes a slim profile with less than 0.825 inches overall depth, enabling flexible mounting. High-quality materials and positive locking connectors ensure reliability and durability under demanding conditions.

Installation. Installation is straightforward, designed for mounting into standard 2-1/16 inch gauge pods without the need for extensive modifications or drilling. The slim depth allows fitment in tight spaces, making it adaptable for various automotive dashboards and custom setups.

Warranty. The product is backed by a manufacturer’s 1-year warranty, ensuring peace of mind and support for any defects or issues encountered.

Application. This gauge is universally compatible with most vehicles, though some adaptation may be required during installation depending on the specific setup and space constraints.

AEM Electronics 30-0302

CA Residents: WARNING: Cancer and Reproductive Harm

• 2-1/16th Inch Gauge Diameter For Easy Mounting In Gauge Pods
• Slim 0.825 Inch Overall Gauge Depth And 0.200 Inch Cup Depth Allows Versatile Mounting Locations
• Programmable Center LED Display Is 87 Percent Larger For Improved Readability
• Twenty-Four Green Outer LEDs Provide Quick Visual Reference To Engine Parameters
• User Selectable Standard Or Metric Display Ranging From 100 To 300°F And 40 To 150°C
• Peak And Recall Functions Accessible Via Gauge Face Buttons
• User Selectable Threshold Warnings For Enhanced Monitoring
• AEMnet CANbus Enabled For Data Transmission To Engine Management Systems Or Data Loggers
• Zero To Five Volt Analog Outputs Support Integration With External Devices
• Auto Dimming Sensor Adjusts Display Brightness According To Ambient Light
• Positive Locking Connectors Ensure Secure Electrical Connections
• Fits Universal; Some Adaptation May Be Required
