Description

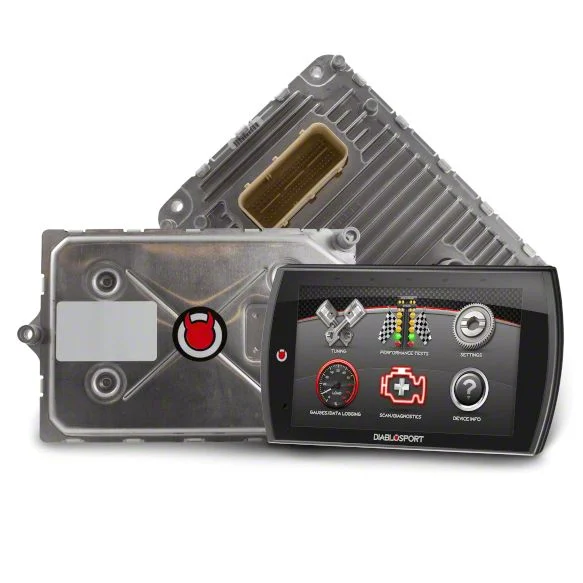

Advanced Tuning Solution. The DiabloSport Trinity 2 Platinum Tuner and Modified PCM Swap Kit provides a comprehensive tuning upgrade for 2016 Ram 2500 and 3500 trucks powered by the 6.4L HEMI engine. By replacing the stock powertrain control module with a modified PCM and incorporating the Trinity 2 handheld tuner, this kit unlocks increased horsepower, enhanced torque, and customizable calibration settings to optimize vehicle performance. Users can safely adjust fuel, spark, throttle, and transmission parameters to improve drivability and towing capabilities.
Construction and Appearance. This kit features a durable ABS plastic housing for the tuner device, designed with a bright five-inch color touchscreen that offers swipe functionality and customizable layouts. The modified PCM is programmed to vehicle specifications and built to OEM standards for reliable operation. The tuner and PCM system use robust electronic components and include software that supports Wi-Fi updates and custom tuning files, all housed in a sleek, user-friendly interface.
Installation. Installation is straightforward and does not require drilling or permanent vehicle modifications. The modified PCM swap and plug-and-play tuner connections ensure minimized vehicle downtime, allowing users to quickly begin using enhanced tuning functions.
Warranty. This product includes a warranty covering defects in materials and workmanship as specified by the manufacturer.
Application. Designed specifically for the 2016 Ram 2500 and 3500 equipped with the 6.4L HEMI engine and compatible transmissions, this kit unlocks factory tuning restrictions unique to these model year and powertrain configurations.
Diablosport PKITDR646S16-T2
CA Residents: WARNING: Cancer and Reproductive Harm
- Compatible With 2016 Ram 2500 And 3500 6.4L HEMI Engines
- Power Gains Of 20-25 Rear-Wheel Horsepower
- Throttle Response Adjustable To Driver Preferences
- Preloaded With Tunes For 87, 91, And 93 Octane Fuels
- Includes Modified Powertrain Control Module And Trinity 2 Platinum Programmer
- Minimal Vehicle Downtime During Tuning Process
- Multiple Preloaded Performance Tunes Available
- Read And Clear Diagnostic Trouble Codes
- Customizable On-Screen Gauge Layouts
- Background Image Upload Capability
- Rev Limiter Adjustable By +/- 500 RPM In Drive And Neutral
- Traction Control And ESP Can Be Disabled Depending On Vehicle Calibration
- Idle Speed Adjustable By +/- 400 RPM
- Includes Required Bypass Module Or Cable
- Speed Limiter Can Be Enabled Or Disabled To Increase Top Speed
- Cooling Fan Activation Temperature Adjustable From 150° To 230° Fahrenheit (Subject To Vehicle Hardware And PCM Strategy)
- Tire Size Correction From 20” To 44” To Adjust Speedometer Accuracy
- Wide Open Throttle Fuel Adjustment From 1,000 To 7,000 RPM By +/- 20%
- Wide Open Throttle Maximum Brake Torque Spark Advance Adjustable By +/- 10
- Wide Open Throttle Spark Advance Adjustable By +/- 10 From 1,000 To 7,000 RPM
- Supports Custom Tunes Via DiabloSport’s Nationwide Tuner Network
- Includes Data Logging, Diagnostics, And Performance Testing Functions
- Five-Inch Color Touchscreen With Swipe Functionality And Real-Time Monitoring
- Compatible With Personal Computers And Mac Systems
- Software Included With Device
- Supports Wi-Fi Updates For Firmware And Tunes
- Erases Fault Codes And Monitors Engine And Transmission Systems
- ABS Plastic Body Material
- Emission Compliance Under EPA Tampering Policy, Not CARB Legal
- Reads And Clears Vehicle Diagnostic Trouble Codes
- Features Auto-Dimming Screen And Alerts With Recording Capability
- Fits 2016 6.4L RAM 2500 And 3500 With Applicable Transmissions
