Description

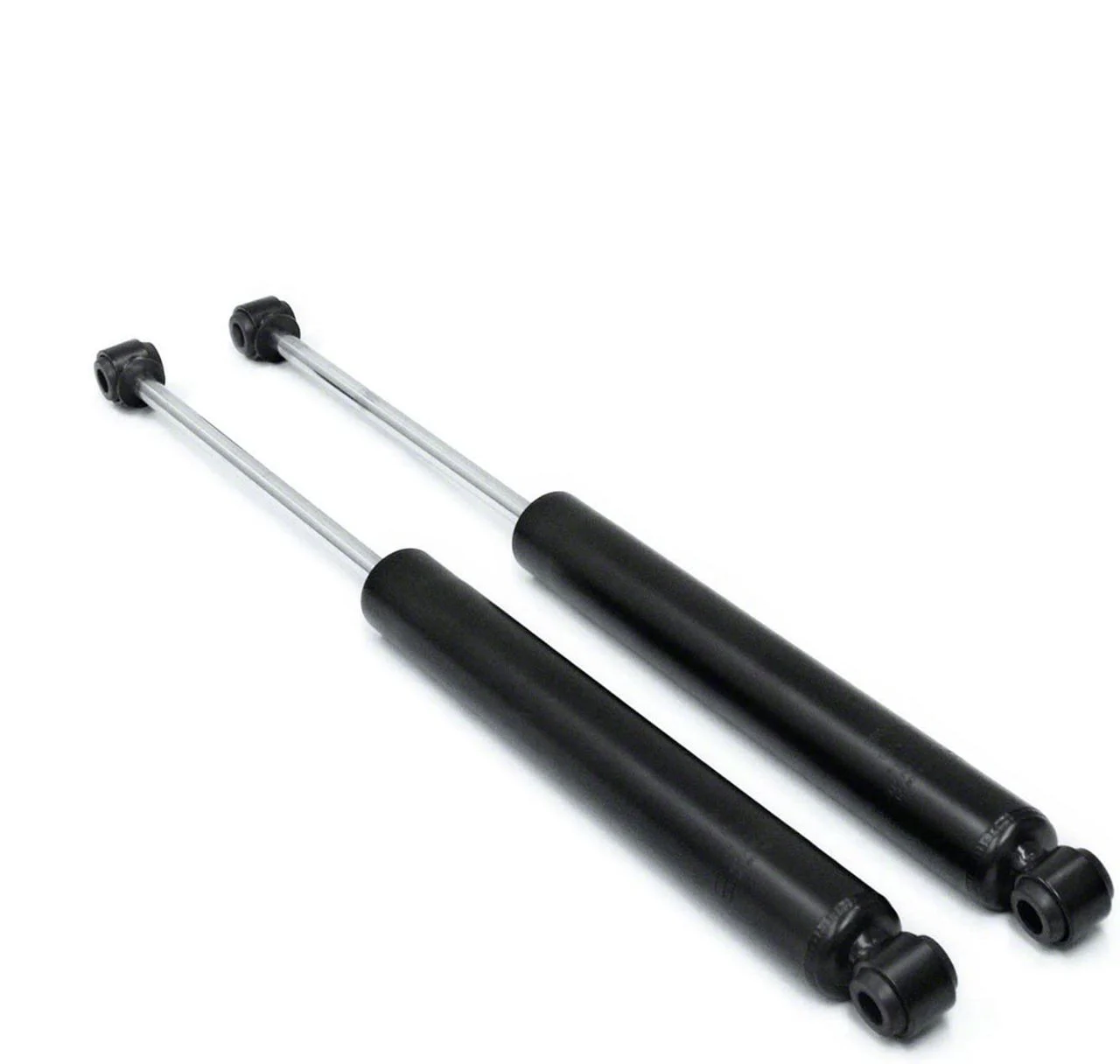

Rear Shock Absorber. The Max Trac Rear Shock Absorber is designed to improve rear suspension performance on 2WD F-150 trucks with rear drop modifications. It helps control suspension movement, enhances ride comfort, and maintains proper vehicle height and stability when lowering the rear end.
Construction and Appearance. This shock absorber features a twin tube design with a durable steel body finished in black paint for corrosion resistance and a sleek look. It includes mounting sleeves to accommodate standard 12mm bolts, ensuring a secure installation.
Installation. Installing this rear shock requires basic mechanical skills and uses existing hardware without the need for drilling. Proper orientation is essential, with the shock body positioned at the bottom and the shaft at the top.
Application. Specifically designed to fit 2015 through 2020 model year 2WD F-150 trucks with a 5 to 6 inch rear drop. Use with wheels wider than 9 inches or with less than 4.5 inches of backspacing is not recommended and will void the warranty.
Shop All Truck Parts And Accessories
Shop All Truck Shocks And Struts
Shop All Truck Suspension
Max Trac 2200LL-9
CA Residents: WARNING: Cancer and Reproductive Harm
- Single Loop-To-Loop Rear Shock Twin Tube Steel Body Black Finish
- Fits Gas Engine Types
- Lower Kit Type
- Weighs 5 Lbs
- Dimensions 20 X 2 X 2 Inches
- Country Of Origin China
- Sold As Each Individual Piece
- Mount With Shock Body At Bottom And Shaft At Top
- Includes 1.5 Inch Wide Sleeves For Up To 12mm Mounting Bolts
- Extended Length 22.3 Inches Collapsed Length 13.4 Inches
- Not Compatible With Wheels Wider Than 9 Inches Or Wheels With Less Than 4.5 Inches Backspacing As It Will Void Warranty
- Fits 2015-2020 2WD F-150 With 5 To 6 Inch Rear Drop
| Brand | Max Trac |
| Shock Type | Non-Adjustable |
| Shock Lift Height | 5 to 6-Inch Drop |
