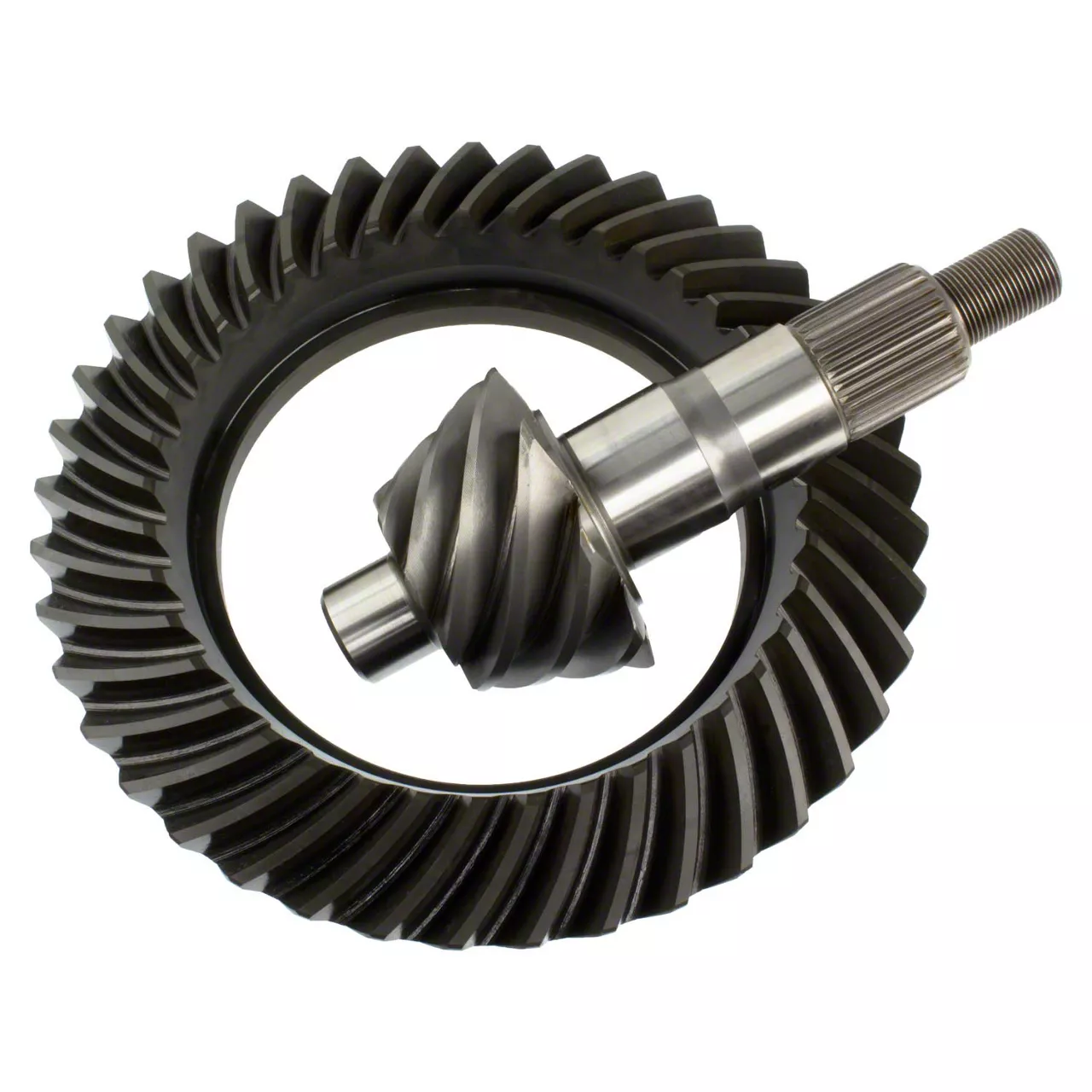

Motive Gear 10.50-Inch Rear Axle Thick Ring and Pinion Gear Kit; 4.56 Gear Ratio (07-18 Silverado 2500 HD)

Description

Precision Gear Kit. The Motive Gear 10.50-Inch Rear Axle Thick Ring and Pinion Gear Kit; 4.56 Gear Ratio is designed to replace or upgrade rear axle gear sets. It transfers power from the driveshaft to the wheels at a specific gear ratio, optimizing torque and vehicle performance. This kit is essential for accurate, durable differential function in demanding drivetrain applications.

_x000D__x000D_

Construction and Appearance. Featuring a ring gear manufactured from durable 8620 steel, this kit is engineered for strength and longevity. The pinion shaft measures 1.75 inches in diameter with 30 splines, while the ring gear measures 10.5 inches outside diameter with 41 teeth. All components undergo rigorous quality control and come in a standard finish suited for rugged automotive environments.

_x000D__x000D_

Installation. Installation is moderately challenging and typically requires professional experience due to precise setup needs. No drilling is required as the kit is designed to fit existing GM 10.5-inch 14 bolt rear axle housings. It is recommended to verify compatibility with your vehicle’s differential carrier, as this kit fits carriers with a break ratio of 4.10 and lower.

_x000D__x000D_

Warranty. This product comes with a 1 Year or 50,000 Mile warranty.

_x000D_

Application. Fits 07-18 Silverado 2500 HD.

Motive Gear GM10.5-456X

CA Residents: WARNING: Cancer and Reproductive Harm

_x000D_
• App Model GM 10.5

_x000D_

• Cover Bolt Quantity 14

_x000D_

• Differential Carrier Break 4.10 Ratio And Lower

_x000D_

• Differential Case Design Type GM 10.5

_x000D_

• Gear Ratio 4.56

_x000D_

• Pinion Gear Tooth Quantity 9

_x000D_

• Pinion Shaft Diameter 1.75 Inch

_x000D_

• Pinion Spline Count 30

_x000D_

• Position Rear

_x000D_

• Ring Gear Bolt Quantity 12

_x000D_

• Ring Gear Material 8620 Steel

_x000D_

• Ring Gear Outside Diameter 10.5 Inch

_x000D_

• Ring Gear Rotation Standard

_x000D_

• Ring Gear Tooth Quantity 41

_x000D_

• Taxonomy A LD Differential

_x000D_

• Taxonomy B Ring And Pinion

_x000D_

• Taxonomy C Rear

_x000D_

• Taxonomy D 4.56

_x000D_

• Fits 07-18 Silverado 2500 HD

_x000D_
