Description

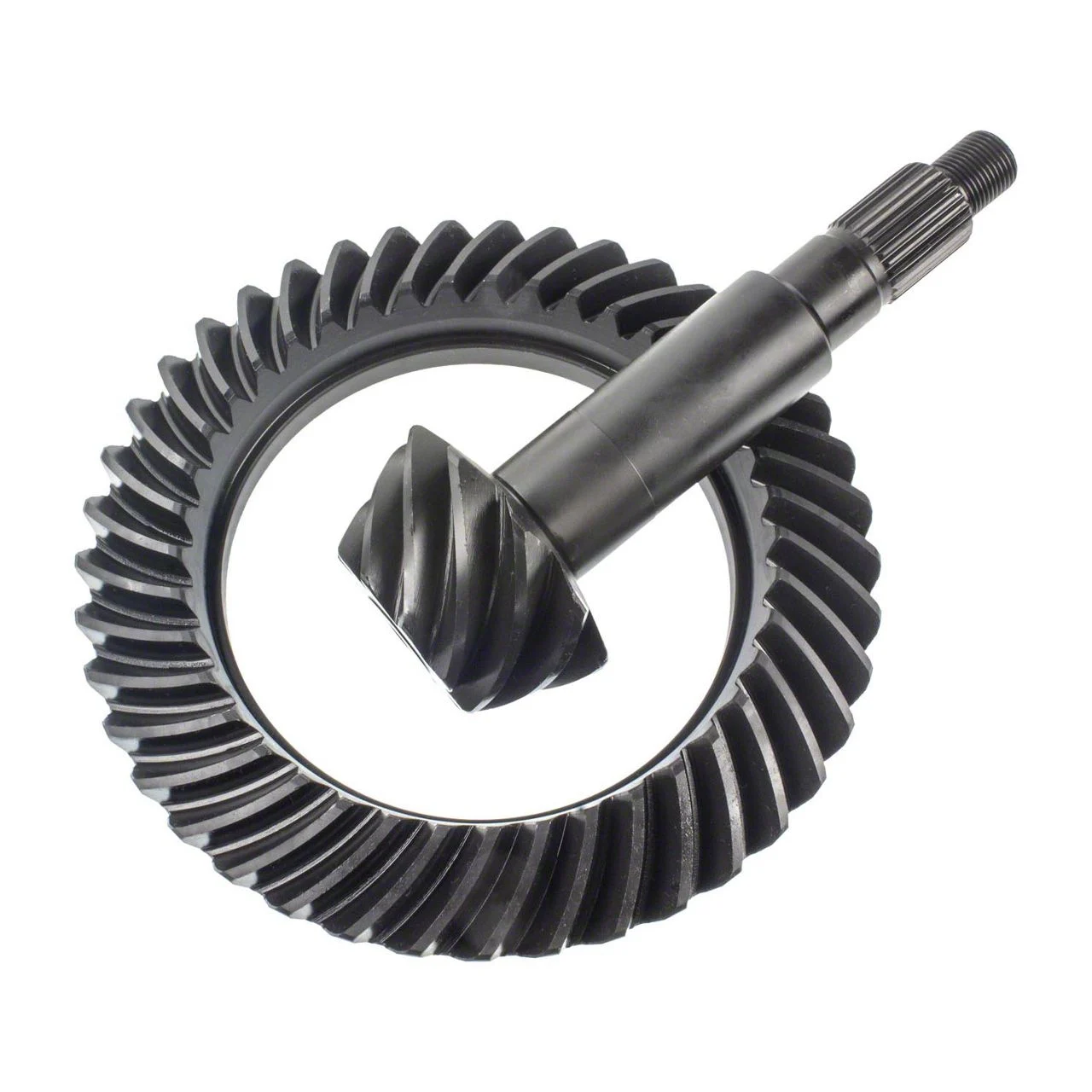

Premium Gear Kit. The Motive Gear Dana 60 Rear Axle Ring and Pinion Gear Kit with a 4.10 gear ratio is designed to replace or upgrade the differential gears in vehicles using the Dana 60 axle. This kit ensures reliable gear engagement to efficiently transmit power from the driveshaft to the wheels, providing smooth operation and durability under demanding conditions.
Construction And Appearance. Manufactured from high-grade 8620 steel, the ring gear features precision-cut teeth with a standard rotation design. The pinion gear and ring are engineered to exact OEM specifications for easy setup and long-lasting performance. The components are finished to resist wear, enhancing drivetrain durability.
Installation. Installation is straightforward for qualified technicians and requires no drilling or modifications to existing components. This kit is compatible with both front and rear Dana 60 axles.
Warranty. This gear kit includes a 1-year or 50,000-mile warranty coverage.
Application. Specifically fits 2004 to 2006 RAM 1500 models equipped with Dana 60 axles and 4.10 gear ratios.
Motive Gear D60-410
CA Residents: WARNING: Cancer and Reproductive Harm
- Application Model Dana 60 Standard
- Cover Bolt Quantity 10
- Differential Carrier Break 4.10 Ratio And Lower
- Differential Case Design Type Dana 60 Standard
- Gear Ratio 4.10
- Pinion Gear Tooth Quantity 10
- Pinion Shaft Diameter 1.626 Inch
- Pinion Spline Count 29
- Position Front, Rear
- Ring Gear Bolt Quantity 12
- Ring Gear Material 8620 Steel
- Ring Gear Outside Diameter 9.75 Inch
- Ring Gear Rotation Standard
- Ring Gear Tooth Quantity 41
- Taxonomy A LD Differential
- Taxonomy B Ring And Pinion
- Taxonomy C Front, Rear
- Taxonomy D 4.10
- Fits 04-06 RAM 1500
