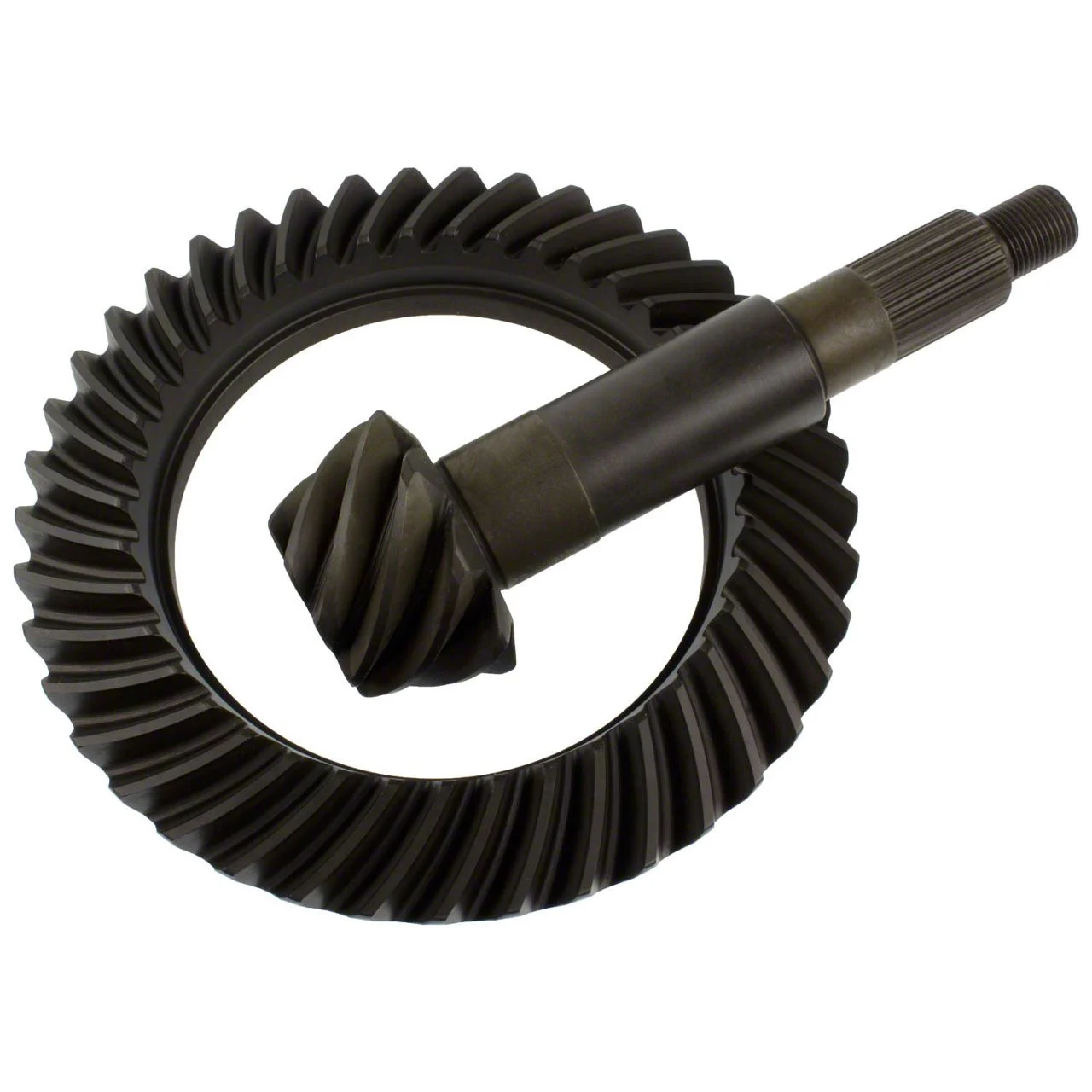

Motive Gear Dana 60 Rear Axle Ring and Pinion Gear Kit; 4.56 Gear Ratio (02-05 Silverado 1500)

Description

Precision Gear Kit. The Motive Gear Dana 60 Rear Axle Ring and Pinion Gear Kit with a 4.56 gear ratio is designed to deliver optimal drivetrain performance through precise gear ratio matching. This ring and pinion set efficiently transfers power from the driveshaft to the axle shafts, improving torque and vehicle control. It is essential for maintaining the correct final drive ratio, ensuring smooth and reliable operation under various load conditions.

_x000D__x000D_

Construction and Appearance. This gear kit features ring gears made from high-quality 8620 steel, renowned for durability and wear resistance. Each gear undergoes strict quality control in an in-house laboratory to ensure exact tooth geometry and durability. The gear surfaces have a precision-machined finish with a standard rotation design, optimized for strength and longevity.

_x000D__x000D_

Installation. Installation requires professional knowledge and specialized tools due to the complexity of axle disassembly and gear setup; however, no additional drilling is necessary. The kit is engineered to meet OEM specifications for straightforward replacement and adjustment.

_x000D__x000D_

Warranty. This gear kit comes with a 1-year or 50,000-mile warranty, providing assurance of quality and durability.

_x000D__x000D_

Application. Specifically designed to fit the 02-05 Silverado 1500, making it an ideal choice for restoring or upgrading the drivetrain of this model.

Motive Gear D60-456

CA Residents: WARNING: Cancer and Reproductive Harm

_x000D_
• Dana 60 Standard Axle

_x000D_

• 10 Cover Bolt Quantity

_x000D_

• 4.56 Ratio And Higher Differential Carrier Break

_x000D_

• Dana 60 Standard Differential Case Design Type

_x000D_

• 4.56 Gear Ratio

_x000D_

• 9 Pinion Gear Teeth Quantity

_x000D_

• 1.626 Inch Pinion Shaft Diameter

_x000D_

• 29 Pinion Spline Count

_x000D_

• Front And Rear Position

_x000D_

• 12 Ring Gear Bolt Quantity

_x000D_

• 8620 Steel Ring Gear Material

_x000D_

• 9.75 Inch Ring Gear Outside Diameter

_x000D_

• Standard Ring Gear Rotation

_x000D_

• 41 Ring Gear Teeth Quantity

_x000D_

• LD Differential Taxonomy A

_x000D_

• Ring And Pinion Taxonomy B

_x000D_

• Front, Rear Taxonomy C

_x000D_

• 4.56 Ratio Taxonomy D

_x000D_

• Fits 02-05 Silverado 1500
