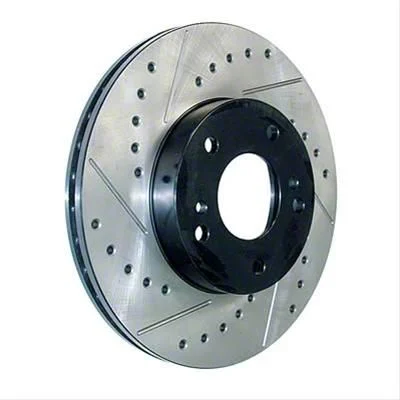

StopTech Sportstop Cryo Drilled and Slotted 8-Lug Rotor; Rear Driver Side (07-10 Silverado 3500 HD SRW)

Description

High-Performance Brake Rotor. The StopTech Sportstop Cryo Drilled and Slotted 8-Lug Rotor; Rear Driver Side enhances braking effectiveness with improved heat dissipation and stopping power for demanding driving conditions, ideal for performance and heavy-duty use.

_x000D__x000D_

Construction and Appearance. Featuring symmetric vane, split-core castings for uniform heat distribution, this rotor includes a black E-Coat anti-corrosive coating that offers superior rust protection compared to standard spray paints. Its friction surface is double disc ground to ensure optimal performance and extended service life.

_x000D__x000D_

Installation. This rotor installs directly without the need for drilling. It mounts using a floating DIH disc with precise bolt hole dimensions for easy and accurate alignment.

_x000D__x000D_

Application. Designed for the rear left position on 2007 to 2010 Silverado 3500 HD SRW models, this brake rotor fits perfectly without requiring modifications.

CA Residents: WARNING: Cancer and Reproductive Harm

_x000D_
• Symmetric Vane, Split-Core Castings For Uniform Heat Distribution

_x000D_

• Black E-Coat Anti-Corrosive Coating Protects Much Better Than Competitors Spray Paint

_x000D_

• Double Disc Ground Friction Surface For Optimal Performance And Service Life

_x000D_

• Disc Brake Rotor With No ABS Tone Ring Or Bearings Included

_x000D_

• Center Hole Diameter Of 4.835 In

_x000D_

• Floating / DIH Disc Mounting

_x000D_

• Discard Thickness Is 27.000 Mm

_x000D_

• Coated Hat Finish

_x000D_

• Hat ID Of 8.087 In (205.400 Mm)

_x000D_

• Max PB Drum Diameter Of 8.169 In (207.500 Mm)

_x000D_

• Mounting Bolt Hole Circle Diameter Of 6.500 In

_x000D_

• Nominal Drum Diameter Is 206.000 Mm

_x000D_

• Nominal Thickness Is 29.000 Mm

_x000D_

• Outside Diameter Is 12.992 In (330 Mm)

_x000D_

• Overall Height Is 3.673 In

_x000D_

• Vented Rotor Type

_x000D_

• Eight Stud/Lug Holes With Diameter Of 16.500 Mm

_x000D_

• Surface Type Is Cross-Drilled And Slotted

_x000D_

• Straight Vane Style

_x000D_

• Durability Rated AAA With Stopping Power 3/5 And Noise Level 1/5

_x000D_

• Fits 07-10 Silverado 3500 HD SRW Rear Left

_x000D_
